Industrial Tilt & Rate Sensor, OEM Package

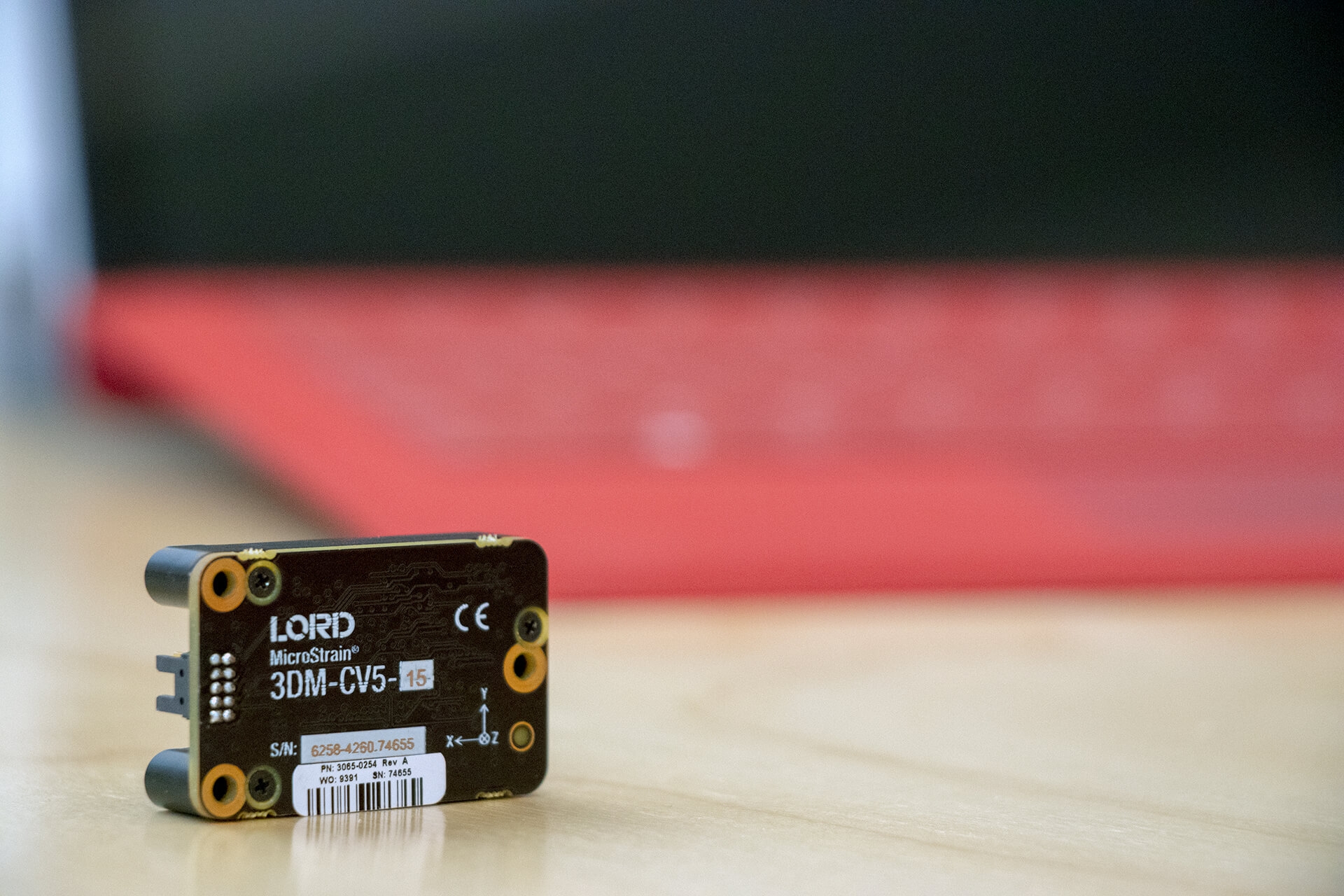

The MicroStrain 3DM^®CV5-AR is the smallest and lightest industrial attitude reference available. It features a fully calibrated and temperature compensated triaxial accelerometer and gyroscope to achieve the optimum combination of measurement qualities under all dynamic conditions.

The 3DM-CV5-AR is designed to balance cost and performance, and is ideally suited for a wide range of applications, including platform stabilization, balancing robots, antenna pointing, and usage monitoring.

Specs

Sensor

• High Performance Accelerometer
  • 100 µg/√Hz (8g standard)
  • 2g, 4g, 20g, 40g options
• Super-stable Gyro
  • 8 dph in-run bias (-40 to +85°C)
  • Offset temperature hysteresis 0.05°/s
  • ARW 0.3°/√hr

Operation

• IMU sampling rate up to 1000Hz
• Auto-adaptive EKF output rate up to 500Hz
• Independently configurable IMU and EKF outputs
• Forward compatible MIP Protocol optimizes bandwidth
• SensorConnect software for configuration, control, display, and logging

Package

• CNC Anodized Aluminum
• Precision alignment features
• Highly compact and low profile
  • 38.0 mm x 24.0 mm x 9.7 mm
  • 11.0 grams
• TTL UART interface (up to 921600 BAUD)
• –40 to +85 °C operating temperature range
